Aluminium driveway sliding gate 3,7 SANTIS 370C160 Grey
SKU : KIT-000210
- Sliding gate mixed infill, vertical bars
- Width : 365cm & Height : 163cm
- Colour : Anthracite grey (RAL 7016)
- Accessories included
By validating your purchases, you will be debited for the amount of your order
In reservation
or
Save 619 €
Save 569 €
Save 689 €
Save 619 €
Save 569 €
Save 689 €
Save 628 €
Save 808 €
Sleeper thickness
2 mm
Locking system
Barrel lock
Compatible motorization type
sliding
Required discharge length
4 m
Length of the tail of the sliding gate
25.4 cm
Eligibility Extended warranty 5 years
No
Length of steel rail
8 m
Sleeper Section
77*30 mm
RAL
7016
Type of lock
4 Keys
Sleeper thickness
2 mm
Locking system
Barrel lock
Compatible motorization type
sliding
Required discharge length
4 m
Length of the tail of the sliding gate
25.4 cm
Eligibility Extended warranty 5 years
No
Length of steel rail
8 m
Sleeper Section
77*30 mm
RAL
7016
Type of lock
4 Keys
Finishing
mast
Recommended number of persons for assembly
2
Amounts Section
78*47 mm
Stud thickness
1.4 mm
Required pillar height
180 cm
Blade width
--
Pattern / Design
SANTIS
Operating clearance
26 mm
Assembly instructions
Yes
Compatible engines
Yes
Supplied accessories
Yes
Assembly time
8 h
Warranty
2 an(s)
Height
162.8 cm
Number of wheels
4
Stud/rail assembly
Self-drilling screws
Thickness of the blades
1.2 mm
Exists by beating
Yes
Handle material
Aluminium
Width between pillars
365 cm
Eligibility Extension of warranty 10 years
No
Rod assembly
Self-drilling screws
Frame material
Aluminium
Main material
Aluminium
Handle colour
Black
Color
Charcoal grey
Width
365 cm
Opening system
Sliding
Type of filling
half openworked
Opening direction
left to right/right to left
Guide system
Upper guide with 4 nylon olives
Weight of package No.1
23.0 kg
Weight of package No.2
28.0 kg
Weight of package No.3
30.0 kg
Weight of package No.4
8.0 kg

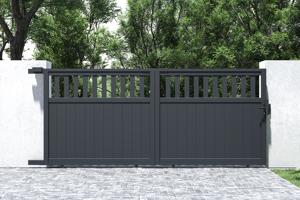

The SANTIS Driveway sliding gate, with its simple and classic design is the perfect compromise between openwork and fully boarded sliding gate.
This vertical mixed infill model will allow you to reconcile luminosity and privacy by means of a barred opening in the upper part and a shading in the lower part.
Description : Sliding gate with mixed infill, Vertical Board with Straight Top & Vertical Open Pales
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 365cm x Height 163cm
Required width with clearance : 781cm
Minimum height of pillars : 175cm
Inspired and designed in France
This Sliding Gate with mixed infill kit, to be assembled and installed by yourself, contains :
- 20 aluminium bars (Width 7.8cm)
- 22 powder-coated aluminium slats (Width 15.5cm)
- 1 top guide with 4 nylon wheels
- 7.9m aluminium guide rail
- 4 steel wheels
- 1 closes strike box
- 1 limit stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts
If you want an automatic sliding gate, you will find promotional packages consisting of a sliding gate of your choice with the appropriate sliding gate automation.
If your installation requires pillars, Casanoov offers promotional packages in the "Sliding Gate" category

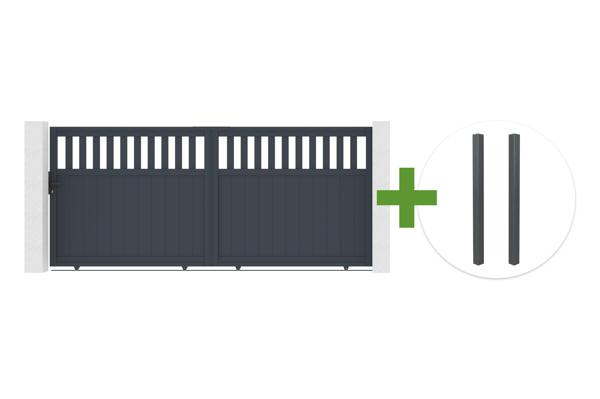

These packages contain one Aluminium sliding gate of your choice, together with two aluminium posts to match the chosen dual sliding gate.
The SANTIS model is also available in other sizes.
Also available as a pedestrian or double swing gate
Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data
It is technically possible to install your gate with an opening from the right to the left.
You will find all the information you need to change the opening direction in our installation instructions.
Our installation instructions for sliding gates have been designed to offer you two different installation methods depending on the chosen opening direction: from left to right or from right to left.
For further information, please contact our customer service via our contact form.
Welcome to Casanoov!
Specializing in the online sale of equipment dedicated to the home environment, Casanoov makes it a point of honor to offer you a complete offer to delimit your exterior according to the latest market trends at affordable prices. Ultra competitive prices.
Quality at the right price! This is Casanoov's motto.
Discover our wide range of aluminum swing gates, sliding gates, gates and fences, the latest trend in terms of material.
All our products have been thought out and designed in kit form.
Easy and quick to install, assembling your Casanoov gates and fences yourself will be child's play.
All our models have been designed to combine both safety and aesthetics.
Casanoov offers you offers the choice to meet all your desires and requirements: classic models with full filling, semi-perforated, perforated or ultra perforated (barred) or more modern with our design models. At Casanoov, everything is done to satisfy you!
Our design models are inspired and designed in France, they are available in 6 variations and each has unique decorative plates, designed by us for you.
Choose the range that best suits you for a modern exterior that suits you.
And for an even more modern exterior, think about automating your entrance and browse our category of motorization which offers you automations for swing and sliding gates adapted to your needs.
Also discover all our accessories for a harmonious exterior, such as our aluminum posts in colors matching our gates, gates and garden fences.
To make your choice easier, you have all the technical information as well as visuals in situation on all of our product sheets.
Payments are secure and delivery is free. Enjoy and happy shopping!
Download the assembly instructions (PDF)
