Aluminium swing gate 4m NEVIS 400B160 Grey
SKU : KIT-000226
- Swing gate mixed infill, horizontal bars
- Width : 397cm & Height : 161cm
- Colour : Anthracite grey (RAL 7016)
- Accessories included
By validating your purchases, you will be debited for the amount of your order
In reservation
or
Save 499 €
Save 489 €
Save 559 €
Save 499 €
Save 489 €
Save 559 €
Save 609 €
Save 619 €
Save 558 €
Save 669 €
Save 738 €
Pivoting system
Ball bearing
Locking system
Cylinder lock
Stud/rail assembly
Self-drilling screws
Warranty
2 an(s)
Handle material
Aluminium
Rod assembly
Self-drilling screws
Eligibility Extended warranty 5 years
No
Amounts Section
78*47 mm
Thickness of the blades
--
Pattern / Design
--
Pivoting system
Ball bearing
Locking system
Cylinder lock
Stud/rail assembly
Self-drilling screws
Warranty
2 an(s)
Handle material
Aluminium
Rod assembly
Self-drilling screws
Eligibility Extended warranty 5 years
No
Amounts Section
78*47 mm
Thickness of the blades
--
Pattern / Design
--
Sleeper Section
77*30 mm
Type of lock
4 Keys
RAL
7016
Finishing
mast
Recommended number of persons for assembly
2
Sleeper thickness
2 mm
End stop
2
Operating clearance
--
Blade section
--
Number of lower hinges
2
Available in sliding
Yes
Assembly time
8 h
Width between pillars
401,7 cm
Stud thickness
1,4 mm
Width
396,7 cm
Supplied accessories
Yes
Height
160,7 cm
Assembly instructions
Yes
Eligibility Extension of warranty 10 years
No
Central stop
Yes
Frame material
Aluminium
Minimum pillar height
175 cm
Opening direction
Towards the house, See Technical diagram
Main material
Aluminium
Color
Anthracite Grey
Opening system
Fighting
Type of filling
half openworked
Top cover cap
Yes
Compatible engines
Yes
Handle colour
Black
Number of upper hinges
2
Compatible motorization type
With articulated arms and cylinders
Weight of package No.1
12.0 kg
Weight of package No.2
25.0 kg
Weight of package No.3
8.5 kg
Weight of package No.4
30.0 kg
The NEVIS Driveway swing gate, with its simple and classic design is the perfect compromise between openwork and fully boarded swing gate.
This horizontal mixed infill model will allow you to reconcile luminosity and privacy by means of a barred opening in the upper part and a shading in the lower part.
Description : Double swing gate with mixed infill, Vertical Board with Straight Top & horizontal Open Pales
Material : Aluminium
Colour : Anthracite grey (RAL 7016)
Dimensions : Width 397cm x Height 161cm
Required width between pillars: 402cm
Minimum height of pillars : 175cm
Inspired and designed in France
This Swing Gate with mixed infill kit, to be assembled and installed by yourself, contains :
- 4 aluminium bars (Width 7.8cm)
- 24 powder-coated aluminium slats (Width 15.5cm)
- 2 upper hinges
- 2 lower hinges
- 2 receiving stop
- 1 middle stop
- 1 cylinder lock
- 1 handle (Colour Black)
- 5 keys
- Finishing caps
- Screws and bolts
The central crosspieces of this double swing gate have been designed to be reinforced so that you can motorise it later if you wish.

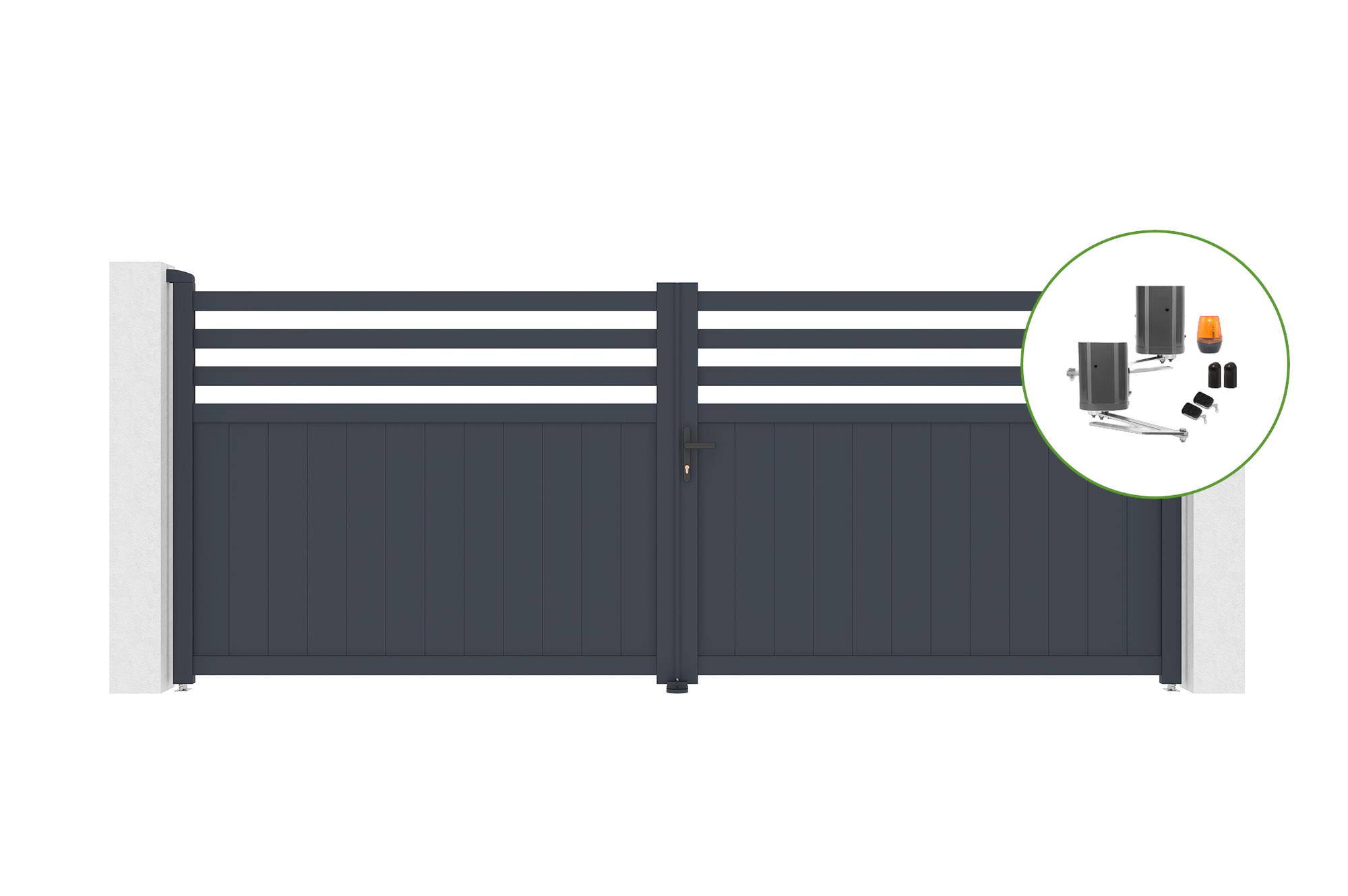

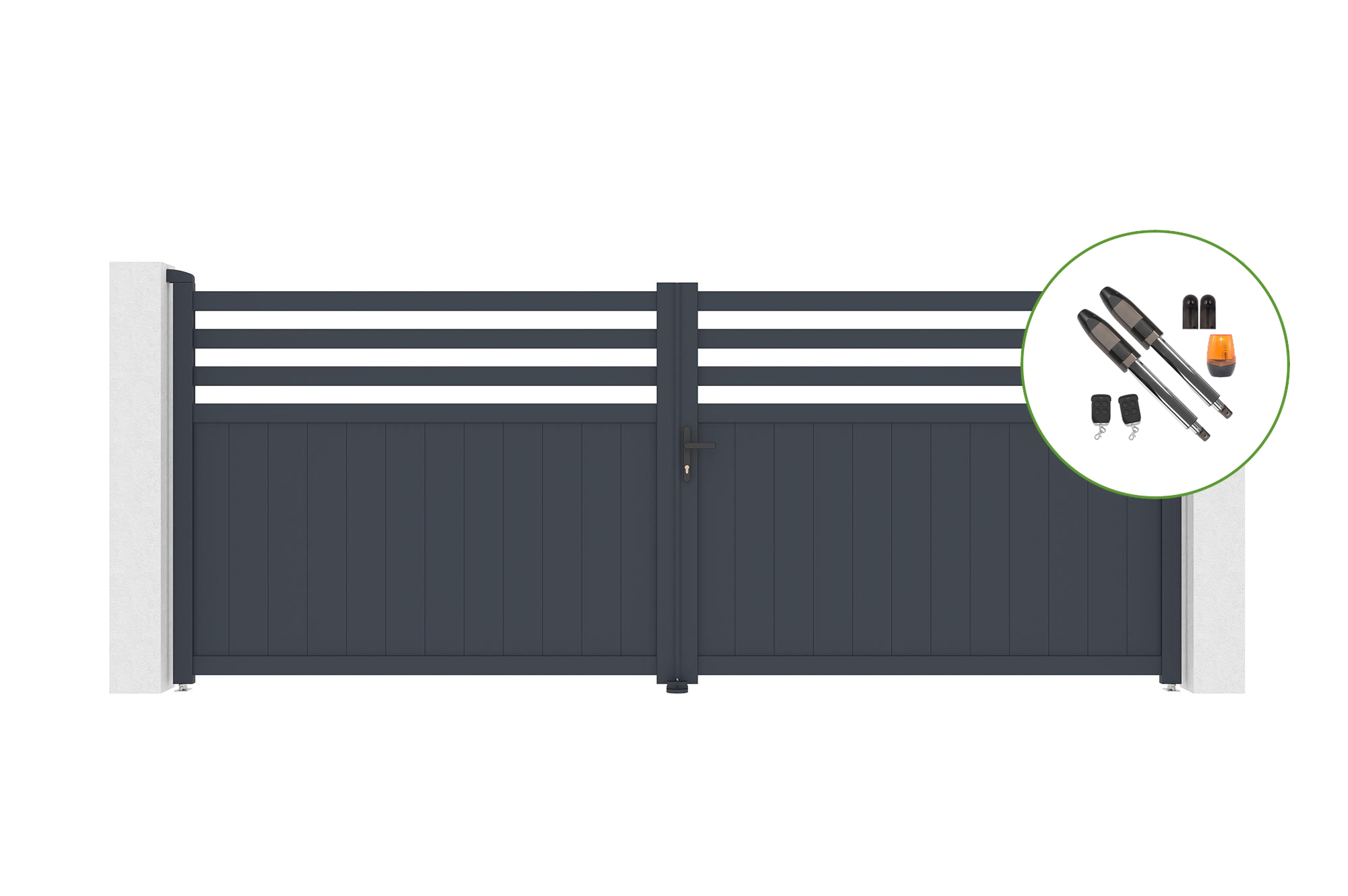

You will find promotional packs offering you a set consisting of a swing gate of your choice accompanied by the appropriate gate automation.
If your installation requires pillars, Casanoov offers promotional packages in the "Swing Gate" category
These packages contain one aluminium swing gate of your choice, together with two aluminium posts to match the chosen dual swing gate.
The NEVIS model is also available in other sizes.
Also available as a pedestrian or sliding gate
Driveway Gate delivered in kit form
Clear instructions, quick and easy assembly
You will find all the necessary information about this product in the technical data
Welcome to Casanoov!
Specializing in the online sale of equipment dedicated to the home environment, Casanoov makes it a point of honor to offer you a complete offer to delimit your exterior according to the latest market trends at affordable prices. Ultra competitive prices.
Quality at the right price! This is Casanoov's motto.
Discover our wide range of aluminum swing gates, sliding gates, gates and fences, the latest trend in terms of material.
All our products have been thought out and designed in kit form.
Easy and quick to install, assembling your Casanoov gates and fences yourself will be child's play.
All our models have been designed to combine both safety and aesthetics.
Casanoov offers you offers the choice to meet all your desires and requirements: classic models with full filling, semi-perforated, perforated or ultra perforated (barred) or more modern with our design models. At Casanoov, everything is done to satisfy you!
Our design models are inspired and designed in France, they are available in 6 variations and each has unique decorative plates, designed by us for you.
Choose the range that best suits you for a modern exterior that suits you.
And for an even more modern exterior, think about automating your entrance and browse our category of motorization which offers you automations for swing and sliding gates adapted to your needs.
Also discover all our accessories for a harmonious exterior, such as our aluminum posts in colors matching our gates, gates and garden fences.
To make your choice easier, you have all the technical information as well as visuals in situation on all of our product sheets.
Payments are secure and delivery is free. Enjoy and happy shopping!
Download the assembly instructions (PDF)
